Building on the proven performance of the Pan America platform, the 2025 Pan America 1250 ST is reimagined for faster, more comfortable, and capable pavement performance, with lowered suspension, quick-shifting, 17-inch wheels, high-performance tires, and a slimmer, lighter profile.

Specifications

  • Dimensions
    add remove
    • Length:
      88.2 in
    • Ground clearance:
      6.7 in
    • Rake (steering head):
      25
    • Trail:
      3.7 in
    • Wheelbase:
      61.8 in
    • Tires, front specifications:
      120/70R19 60V
    • Tires, rear specifications:
      180/55ZR17 73W
    • Fuel Capacity:
      5.6 gal
    • Oil capacity:
      4.75 qt.
    • Weight, as shipped:
      507 lbs
    • Weight, in running order:
      542 lb
  • Engine
    add remove
    • Engine:
      Revolution® Max 1250
    • Bore:
      4.1 in
    • Stroke:
      2.8 in
    • Displacement:
      76.40 in3
    • Compression ratio:
      13.0:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-1-into-1; catalyst in header
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      91.5 ft-lb
    • Engine torque (RPM):
      6750
    • Horsepower:
      149 HP / 111 kW @ 8750 rpm
    • Lean angle, right (deg.):
      37
    • Lean angle, left (deg.):
      37
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      46 mpg (5.1 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Gear, 49/89 ratio
    • Gear ratios (overall) 1st:
      13.11
    • Gear ratios (overall) 2nd:
      9.687
    • Gear ratios (overall) 3rd:
      7.509
    • Gear ratios (overall) 4th:
      6.057
    • Gear ratios (overall) 5th:
      5.08
    • Gear Ratios (overall) 6th:
      4.436
  • Chassis
    add remove
    • Front fork:
      47mm inverted fork with electronically adjustable preload and manually adjustable compression and rebound. Aluminum fork triple clamps
    • Rear shocks:
      Linkage-mounted monoshock with automatic electronic preload control and manually adjustable compression & rebound damping
    • Wheels, front type:
      Aluminum cast, satin black
    • Wheels, rear type:
      Aluminum cast, satin black
    • Brakes, type:
      Front: dual rotor, floating, hub mounted; Rear: solid uniform expansion rotor
    • Brakes, caliper type:
      Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
    • ABS:
      Standard
  • Infotainment
    add remove
    • Type:
      Color TFT w/ Touch
    • Headset specifications (if equipped):
      Bluetooth
    • Voice Recognition Languages: Phone functions only:
      Phone dependent
    • Voice Recognition Languages: Tuner / Media / Navigation:
      Phone dependent
    • Text-to-Speech (TTS) languages:
      Phone dependent
    • Rider / passenger intercom:
      Headset function only
    • Vehicle information screen:
      TPMS, Engine temp, Battery Voltage, Ambient Air Temp
    • USB:
      Charging and Instrument update, USB-C, 5V, 3A
    • Bluetooth:
      Phone/Media Supported

Request Details

Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Any advertised pricing excludes applicable taxes title and licensing, dealer set up, destination, reconditioning and are subject to change without notice. Pricing may exclude any added parts, accessories or installation unless otherwise noted. The MSRP is for a stock model in base color, excluding destination charges (including freight, handling, and processing), tax, title, licensing, registration fees, added accessories, trim and color options, and additional dealer charges, if any. Harley- Davidson charges dealers for destination costs and may make a profit on some of those charges. Harley- Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks.

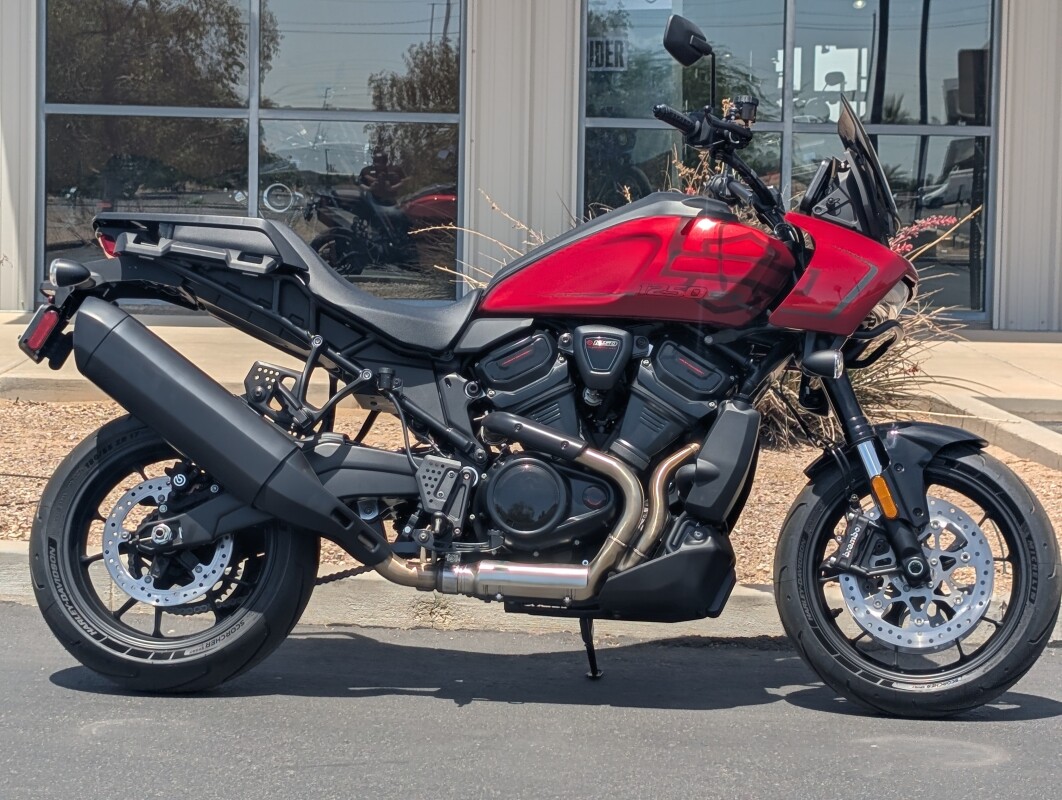

2025 Harley-Davidson® Pan America® 1250 ST
